High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration

محل منبع چین
گواهی ISO9001
شماره مدل 36mm-100mm
مقدار حداقل تعداد سفارش 1200 کیلوگرم
جزئیات بسته بندی پالت، 1200 کیلوگرم / پالت
زمان تحویل 7-15 روز
شرایط پرداخت T/T، L/C، Western Union
جزئیات محصول
مواد خام 100% PET ازدیاد طول در شکست 60%
نمونه در دسترس و رایگان مواد پلی استر
برنامه قالب گیری استحکام کششی 150 مگاپاسکال
بسته بندی کیسه پلاستیکی، پالت رنگ شفاف
کد Hs 392062 مقاومت در برابر دما تا 180 درجه سانتیگراد
عرض 50 میلی متر، 70 میلی متر یا به عنوان سفارش
پیام بگذارید
توضیحات محصول

High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration



This 25 - um - thick Polyester Release Film is specifically designed for use in the manufacturing process of Glass - Reinforced Plastic (GRP) pipelines. Its unique properties make it an essential component in ensuring the high - quality production of these pipelines. With excellent strength, it can withstand the pressures and forces exerted during the manufacturing steps. The film's strong yet flexible nature allows it to conform precisely to the shape of the pipeline molds. Its remarkable clarity ensures that there are no visual impairments or distortions that could potentially affect the quality inspection of the GRP pipelines. Moreover, being free of joint knots, it provides a smooth and continuous surface, which is crucial for the uniform curing and integrity of the GRP material, resulting in durable and reliable GRP pipeline.



Product Features

Excellent resistance to high and low temperatures

Good chemical resistance

Excellent mechanical and electrical performance

Excellent flatness, low friction coefficient



Product Application

This product is widely used for mold demolding and surface smoothing in the production process of fiberglass pipelines, storage tanks, etc. The film surface can also be coated with silicone oil treatment to make demolding more efficient.

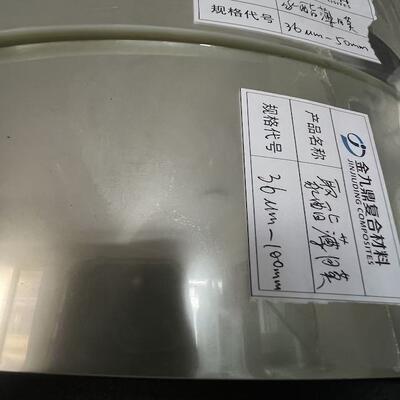

High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration 0

Technical Data



Item Standard
Thickness (um)

19/25/30/36/40/50/75 ± 10%



Tensile strength (Mpa )      (warp and weft)

≥ 150



Break elongation (%)

≥ 60



Shrinkage (%) (warp and weft) ≤3
Stability under high temparature

≥180
