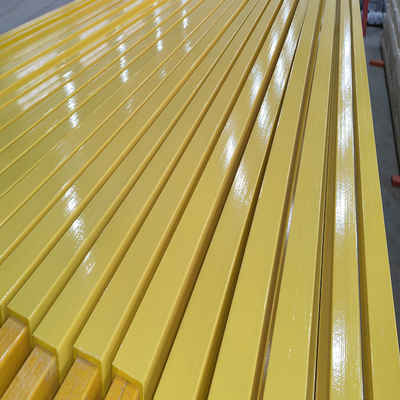

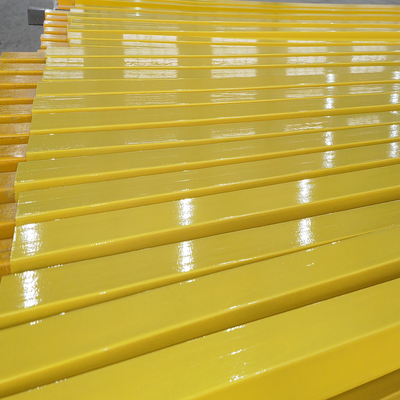

FRP rectangular tube by pultrusion process, brushing the surface with certain paint, to reach very high demand on surface smoothness and good-looking
| محل منبع | چین |
|---|---|
| گواهی | ISO 9000 |
| شماره مدل | لوله مستطیلی 55x25x3.0mm |
| مقدار حداقل تعداد سفارش | 500 کیلوگرم |
| قیمت | negotiatable |
| جزئیات بسته بندی | <i>usually packed in pallet and the quantity of a container depends on the measure and shape of the |
| زمان تحویل | 7 روز |
| شرایط پرداخت | T/T، L/C |
| قابلیت ارائه | 10 تن در هفته |
جزئیات محصول
| مواد | پروفیل تقویت شده الیافی با pultrusion | رنگ | زرد، می تواند به عنوان سفارش انجام شود |
|---|---|---|---|
| بعد | 55x25x3mm | مواد | پلی استر، VE، فنولیک، اپوکسی، و غیره |
| شخصیت | با دوام در دمای بالا | برنامه | زیرساخت و حفظ مواد شیمیایی و غیره |
توضیحات محصول
FRP rectangular tube by pultrusion process, brushing the surface with certain paint, to reach very high demand on surface smoothness and good-looking
Specification:
| Rectangular tube | |
| A×B×T | g/m |
| 35×22×3 | 542 |
| 38×32×5 | 1120 |
| 40×25×3 | 655 |
| 40×30×3 | 710 |
| 52×32×4 | 1124 |
| 55×25×2.2 | 640 |
| 55×25×3 | 820 |
| 65×30×3 | 965 |
| 65×30×4 | 1250 |
| 69×25.4×4 | 1280 |
| 73×25×3 | 1020 |
| (75×3)×( 35×6) | 1440 |
| 75×45×3.5 | 1470 |
| 75×50×5 | 2180 |
| (89×5)×( 44.5×10) | 2950 |
| 100×50×5 | 2590 |
| (139×5)×( 44.5×10) | 3850 |
Introduction:
FRP profiles are high strength composite that comprises the reinforced material, thermosetting resin matrix (polyester, VE,, phenolic, epoxy, etc) and glass fiber (in the form of roving, mat, fabric etc.) supplementary curing agent and addictives, and cures to the desired shape through a certain process.
Features:
Pultruded FRP profiles possess the features of light weight, high strength, corrosion resistance, electric insulation, anti-aging, nonmagnetic, easy processing and bright color, able to meet the properties demands of different fields and surroundings, and are widely used in construction industry, chemical perservation, electric electronics, sewage treatment, transportation and recreation.
Pultruded FRP profiles include H/I beam, angle, C/U channel, round tube, square tube, flat bar and rod etc standard profile and specially desgined customized profile.
